商品の詳細:
|
| Name: | Slot-type photoelectric switch | Type: | Elevator Parts |
|---|---|---|---|
| Packing: | Standard Packing | Voltage: | DC10～30V±5%ltage |
| Product: | Slot-type photoelectric switch | Model: | Slot-type photoelectric switch |
| Current Consumption: | 8mA | Detection Distance: | 30mm |
| Shell Material: | ABS+PC | Weight: | About 50g |
| Insulation Resistance: | Min: 20MΩ (500VDC) | ||
| ハイライト: | Precision Photoelectric Switch,Photoelectric Switch for Automation |
||
Precision Slot-Type Photoelectric Switch – Industrial Object Detection Sensor For Automation

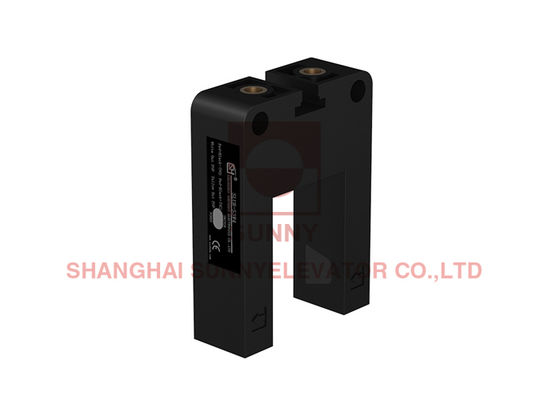

TYPE:SLUR-S3W4 series
Applications and Features
This product is used for the position detection of elevator cabins to determine whether the elevator is level at the specified floor. Its main principle is based on the photoelectric effect.
|
Power Supply Voltage |
DC11～30V±5% |
|
Current Consumption |
8mA |
|
Detection Distance |
30mm |
|
Detected Object |
>φ2mm, non-transparent object |
|
Detection Channel |
Single Channel |
|
Light Source Properties |
940mm |
|
Control Output |
Load Voltage Max: 60V; Single Channel Drive Current: Max: 200mA; Residual Voltage Max: DC0.7V |
|
Protection Circuit |
Reverse Polarity Protection for Power Supply, Overvoltage and Overcurrent Protection at Output |
|
Response Time |
<1ms |
|
Ambient Illumination |
Incandescent Lamp: ≤4000Lux; Sunlight: ≤150000Lux, sunlight should not directly shine on the light-receiving surface. |
|
Ambient Temperature |
Operating: -25℃～85℃; Storage: -30℃～100℃ |
|
Ambient Humidity |
Operating: 35～80%RH; Storage: 35～80%RH |
|
Insulation Resistance |
Min: 20MΩ (500VDC) |
|
Insulation Withstand Voltage |
500VAC 50/60Hz 1min |
|
Vibration Resistance |
10～55Hz, vertical amplitude 1.5mm, each direction X, Y, Z for 2 hours |
|
Shock Resistance |
500m/s², each direction X, Y, Z for 3 times |
|
Protection Level |
IP40 (IP53, IP65 can be customized) |
|
Shell Material |
ABS+PC |
|
Weight |
About 50g |
|
Cable |
RVV4*0.2, default 0.6m |

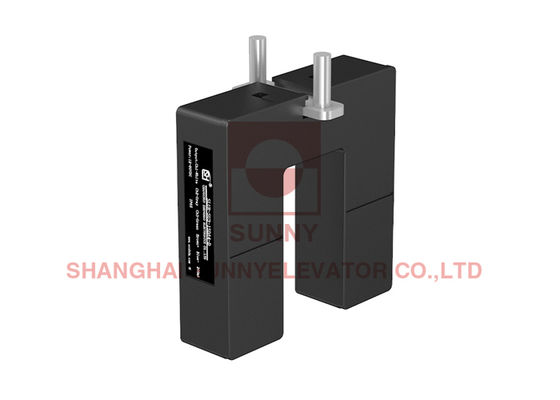

TYPE:SLUR-S3U3 series
Applications
This product is used for the position detection of elevator cabins to determine whether the elevator has reached the specified floor. Its main principle is based on the photoelectric effect.
|
Power Supply Voltage |
DC12～60V±5% |
|
|
Current Consumption |
＜50mA |
|
|
Detection Distance |
26mm |
|
|
Detected Object |
>φ2mm, non-transparent object |
|
|
Detection Channel |
Three Channels |
Two Channels |
|
Light Source Properties |
940mm |
|
|
Control Output |
Max Load Voltage: 60V; Single Channel Drive Current: Max: 200mA; Residual Voltage Max: 0.7VDC |
|
|
Protection Circuit |
Reverse Polarity Protection, Output Overvoltage and Overcurrent Protection |
|
|
Response Time |
<1ms |
|
|
Ambient Light |
Incandescent Lamp: ≤4000Lux; Sunlight: ≤120000Lux, sunlight should not directly shine on the light-receiving surface |
|
|
Ambient Temperature |
Operating: -25℃～85℃; Storage: -30℃～100℃ |
|
|
Ambient Humidity |
Operating: 35～80%RH; Storage: 35～80%RH |
|
|
Insulation Resistance |
Min: 20MΩ (500VDC) |
|
|
Insulation Withstand Voltage |
500VAC 50/60Hz 1min |
|
|
Vibration Resistance |
10～55Hz, amplitude 1.5mm, X, Y, Z directions for 2 hours each |
|
|
Shock Resistance |
500m/s², X, Y, Z directions for 3 times each |
|
|
Protection Level |
IP40 (IP53, IP65 can be customized) |
|
|
Shell Material |
ABS+PC |
|
|
Weight |
About 80g |
|
|
Cable |
UL2464 5*22AWG, UL2464 4*22AWG default 5m |
|
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
