商品の詳細:
|
| 製品名: | エレベーター ガイド靴 | ガイド・レールの幅: | 5mm |
|---|---|---|---|
| タイプ: | エレベーター ガイド靴 | 定格速度: | ≤1.75 m/s |
| 応用: | パーツを持ち上げます | ビジネスタイプ: | メーカー |
| 製品名: | エレベーター部品 | 該当する: | エレベーター機器 |
| モデル: | エレベーター ガイド靴 | 製品: | エレベーター ガイド靴 |

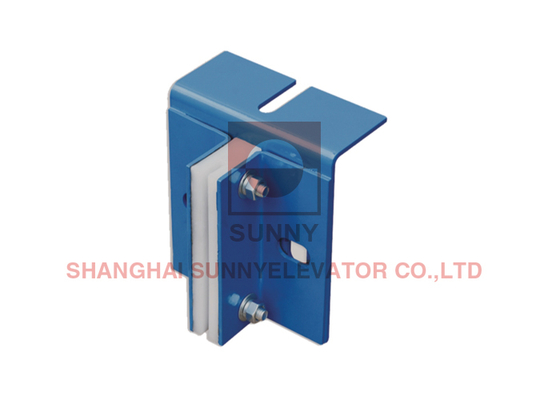

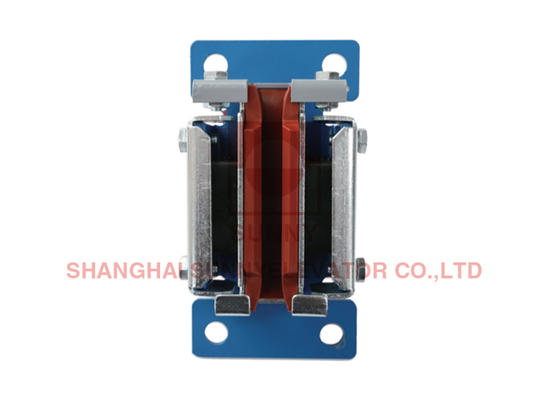

Elevator Slide Speed Guide Shoe Premium Low-Friction Polymer Shoe For Smooth
In the intricate ecosystem of a modern elevator system, the slide speed guide shoe is a critical yet often overlooked component dedicated to safety, ride comfort, and operational efficiency. Its primary function is to guide the elevator car along the guide rails, ensuring stable vertical movement while minimizing vibration, noise, and lateral sway during travel.
Unlike traditional roller guide shoes that use wheels, slide guide shoes employ a sliding interface, typically a replaceable composite lining or shoe, which moves directly against the guide rail. This design is particularly advantageous for high-speed elevators. The term "speed" in "slide speed guide shoe" does not refer to the shoe itself moving faster, but rather to its application in high-speed elevator systems, often those traveling at 2.5 meters per second (500 ft/min) and above.
The key to its performance lies in its material composition. The sliding surface is made from a specialized polymer or composite material, such as polyurethane or a phenolic resin, often filled with lubricating elements like molybdenum disulfide. These materials are engineered for:
·Low Coefficient of Friction: To ensure smooth travel and reduce energy consumption.
·High Wear Resistance: To provide a long service life despite constant contact with the steel rail.
·Vibration Damping: To absorb minor imperfections in the guide rail and suppress noise, resulting in a remarkably quiet ride.
·Self-Lubrication: Many modern designs are "lubrication-free," reducing maintenance needs and environmental contamination.
The guide shoe assembly is mounted to the car frame and is adjustable. Technicians can precisely align the shoes with the guide rails, maintaining the optimal clearance to ensure the car travels perfectly plumb without binding or excessive play.
| Type | SN-DX-H21 |
| Name | Slide speed guide shoe |
| Rated Speed | ≤1.75m/s |
| Width of Guide Rails | 5mm |
 |
|
| Type | SN-DX-H22 |
| Name | Slide speed guide shoe |
| Rated Speed | ≤1.75m/s |
| Width of Guide Rails | 10/16mm |
|
Allowable gross mass |
≤1000kg |
|
Pressure on the front surface of guide rail |
≤1000N |
|
Pressure on the side surface of guide rail |
≤650N |
|
|
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
