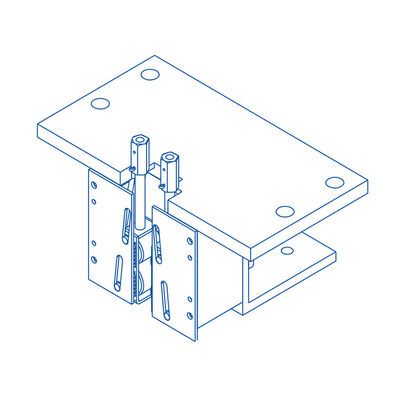

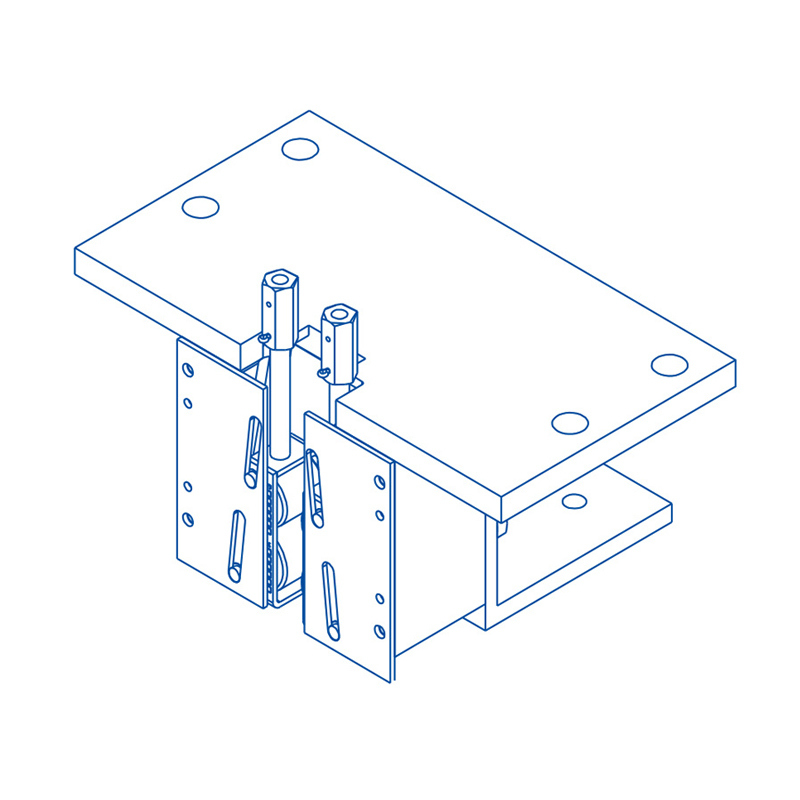

≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices

認証
中国 SHANGHAI SUNNY ELEVATOR CO.,LTD 認証
中国 SHANGHAI SUNNY ELEVATOR CO.,LTD 認証
顧客の検討
サービス は のpeople-oriented  であり、 の正直者の は   魅力的なほとんどの である。 それはあなたに協力する喜びである

—— Millay

オンラインです

≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices

≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices
≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices

大画像 :  ≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices

商品の詳細:
起源の場所: 中国
ブランド名: SUNNY
証明: CE,ISO9001
モデル番号: SN-SG-QS6
お支払配送条件:
最小注文数量: 1個
価格: $50~100
パッケージの詳細: カートンボックス
受渡し時間: 7〜15日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 5000 PC月

≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices

説明
名前: 即時の安全ギヤ 定格速度: ≤0.63m/s
P+Q: ≤7000Kg ガイドレールの幅: 15.88/16mm
モデル: エレベーターの安全ギヤ 使用済み: エレベーター部品
証明: GB 保証時間: 1年
タイプ: 即時の安全ギヤ 製品: 即時の安全ギヤ

≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices



Parameter Table



Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

≤0.63 ≤0.8 ≤7000 15.88/16 GB Dry/Lubricated 200x300x149



≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices 0



≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices 1



≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices 2



≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices 3



≤0.63M/S Speed Elevator Spares Instantaneous Safety Gear Lift Safety Devices 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
