| ハイライト: | Freight lift safety gear,Cargo elevator safety parts,Elevator safety components 0.25~1.5m/s |
||
|---|---|---|---|

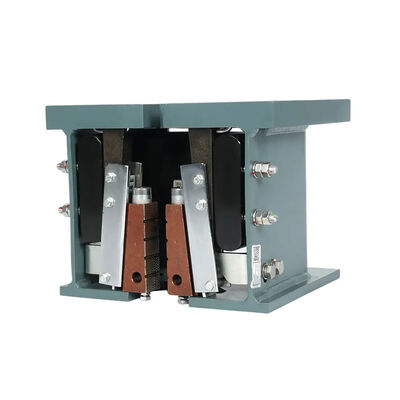

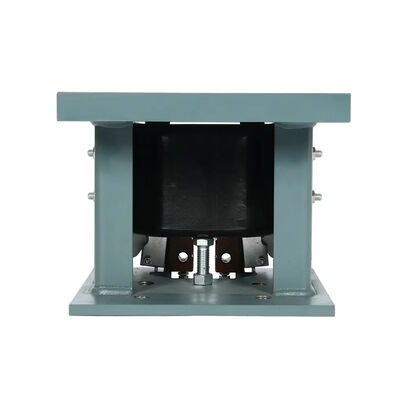

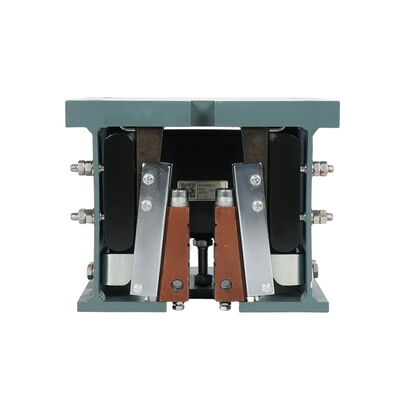

The LSG18 high-capacity freight lift safety gear cargo elevator safety parts, lies in its dual wedge structure and U-shaped leaf spring as the spring element. This ensures smooth and reliable car braking in emergency situations, safeguarding both passengers and cargo. With a maximum system mass of 12.5 tons, this safety clamp is suitable for freight elevator systems with high rated speeds and heavy loads.
The structural design of this safety clamp fully considers the high reliability and long life requirements of practical applications. The U-shaped leaf spring, as the spring element, provides stable clamping force between the wedge and the guide rail, ensuring smooth braking and reducing impact and wear on the guide rail. Furthermore, the deformation of the U-shaped leaf spring determines the clamping force, so it is precisely adjusted to the load and guide rail conditions before shipment and sealed to ensure stable performance.
| Rated Speed | 0.25-1.5 m/s |
| Tripping Speed | 0.29-2.04 m/s |
| Rail Width | 9/16 mm |
| Permitted P+Q | 6500-12500 kg |
| Rail Lubrication | Oil/Dry |
| Certifications | GB |
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
Yes, we do with ISO9001 / CCC / CE Certificates for u.
