商品の詳細:
|
| 名前: | ヴィラエレベーター安全装置ホームリフト安全装置 | タイプ: | エレベーター部品 |
|---|---|---|---|
| スピード: | 0.25-0.63m/s | P+Q: | ≤1500kg |
| トリップスピード: | 0.29-0.8 m/s | モデル: | 車の部品 |
| 製品名: | ヴィラエレベーター安全装置ホームリフト安全装置 | 製品: | ヴィラエレベーター安全装置ホームリフト安全装置 |
| 使用: | リフト | 柵の幅: | 9/10/15.88/16mm |
| ハイライト: | Villa elevator safety gear,Home lift safety device,Elevator safety gear with warranty |
||

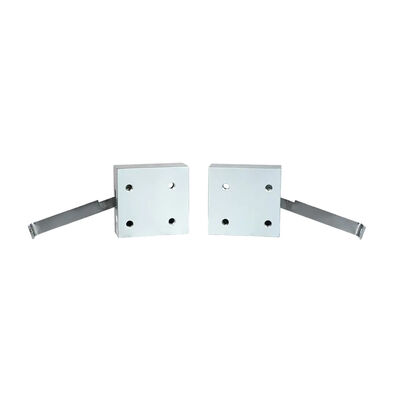

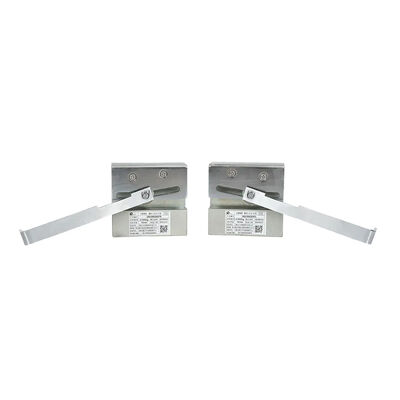

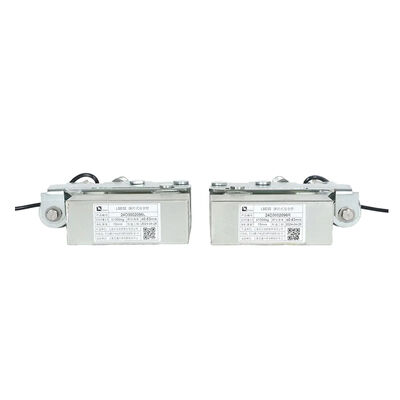

The LSG02 villa elevator safety gear home lift safety device features multiple mounting interfaces to accommodate the diverse installation requirements of residential elevators. Whether mounted vertically or sideways, the LSG02 offers flexible adaptation to meet diverse space layout requirements.
The LSG02 utilizes a roller-type instantaneous safety clamp structure, offering fast action and a short stopping distance, typically within tens of millimeters. It is ideal for emergency braking in low-speed elevators. Its extremely short stopping time effectively prevents the car from falling, ensuring passenger safety.
The LSG02 also offers excellent compatibility and scalability, making it suitable for a wide range of residential elevator models.
| Rated Speed | 0.25-0.63 m/s |
| Tripping Speed | 0.29-0.8 m/s |
| Rail Width | 9/10/15.88/16 mm |
| Permitted P+Q | 6500-12500 kg |
| Certifications | GB |
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
Yes, we do with ISO9001 / CCC / CE Certificates for u.
