商品の詳細:
|
| 製品名: | 壁掛けLOP | 材料: | 強化ガラス |
|---|---|---|---|
| 画面: | DOTマトリックス | サイズ（mm）: | 100×43×15 |
| ティピエ: | エレベーター部品 | モデル: | 壁掛けLOP |
| 製品: | 壁掛けLOP | 設置方法: | 壁掛け |
| 製品の色: | ブラックシルバー/プラチナ | 通信方法: | RS485 |
| ハイライト: | wall-mounted elevator control panel,LOP elevator panel tempered glass,elevator control panel RS485 communication |
||
| Product Name | Magnolia LOP (Mini Version) | |||
| Compliance | GB/T 21739-2008 | |||
| Compatible System | Monarch System - Glory Cabinet/MINI Cabinet/Future Cabinet/3rd Generation Cabinet | |||
| Basic Information | Product Model | MAGO10-ZX-GGM-01 | MAGO10-ZZ-GGM-01 | |

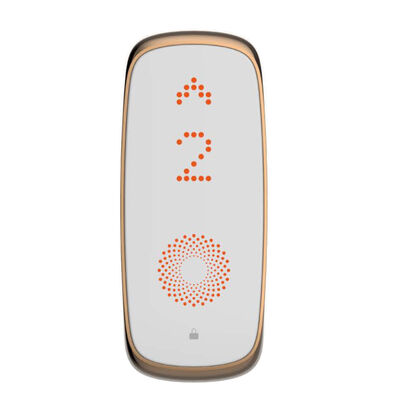

| Product rendering image |  |
|
|
|
| Product Style | Dot Matrix Display Version | Ambient Direction Light Version | Voice Call Elevator Version | |
| External Dimensions (mm) | 100×43×15 | |||
| Box Dimensions (mm) | / | |||
| Product Color | Black Silver/Platinum | |||
| Panel Material | Tempered Glass | |||
| Frame Material | Bright Chrome-plated Zinc Alloy/Rose Gold Zinc Alloy | |||
| Display Module | Dot Matrix | / | / | |
| Communication Method | RS485 | |||
| Button Type | Capacitive Sensing Button | |||
| Functional Parameters | Child Lock Function | Standard | Standard | Standard |
| Destination Floor Voice Call | / | / | Standard | |
| Ambient Direction Light | / | Standard | / | |
| Installation Method | Wall-mounted | |||
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
Yes, we do with ISO9001 / CCC / CE Certificates for u.
